How to Plan a Commercial Kitchen Layout for Efficient Workflow and Compliance

Planning a Commercial Kitchen Layout Starts with the Work, Not the Equipment

A commercial kitchen layout is often treated as a drawing exercise: place the cookline, fit the refrigeration, leave enough clearance, and call it done. In practice, that approach creates most of the problems project managers later have to fix in the field. A kitchen is a moving system. People, raw ingredients, hot food, cleaning tools, waste, and maintenance access all need to pass through the same space without creating bottlenecks or compliance issues.

For project managers and engineering leads, the real question is not whether a layout “fits” on paper. It is whether the space can sustain the intended volume, service style, hygiene controls, and operating rhythm once the team starts using it every day. That means planning around process flow first, then equipment, then utilities, then code and inspection requirements.

Start with the operating model

Before fixing equipment positions, define how the kitchen will actually work. A hotel banqueting kitchen, a quick-service restaurant, a central production kitchen, and a food processing support area all have different traffic patterns and risk points. The same equipment list can produce very different results depending on whether the business is built around batch production, made-to-order service, or mixed prep and dispatch.

This is where many layouts fail: they optimize for purchase order completeness rather than operating logic. A project team should map the sequence from receiving to storage, prep, cooking, holding, plating, dispatch, return, and waste removal. If any of those steps cross back through a clean zone or force staff to double-handle product, the layout is already working against efficiency.

A useful test is simple: can raw product, finished food, dirty dishware, and waste all move without crossing paths? If the answer is no, the layout needs revision before procurement locks it in.

Design the flow before placing equipment

In a well-planned commercial kitchen layout, movement is directional. The workflow should reduce backtracking and avoid unnecessary turns, lifts, and transfers. That sounds obvious, but it becomes difficult once mechanical, electrical, plumbing, fire suppression, and structural constraints enter the picture. The key is to treat those constraints as design inputs, not excuses to accept a poor process.

At a minimum, the kitchen should support five distinct flows:

• Inbound goods from receiving to storage
• Cold and dry storage to prep and production
• Production to cooking, holding, and service
• Used ware to washing and sanitation
• Waste and recycling out of the food path

Crossing these streams is sometimes unavoidable in legacy sites, but every crossing adds risk. If you must compromise, isolate the crossing point and make the route as short and visible as possible. Hidden conflict points usually become sanitation problems, not just operational annoyances.

Space planning should follow sanitation logic

Food safety expectations now shape layout decisions more directly than they did a decade ago. This is partly driven by stricter inspection regimes and partly by the rise of centralized production, delivery-heavy service models, and smart monitoring systems. Regardless of geography, the logic is consistent: the layout must support separation, traceability, and cleaning.

That means the project team should verify more than just square footage. Important checks include:

• Separation of raw and ready-to-eat zones
• Adequate handwashing access where staff actually work
• Easy-clean surfaces and wall/floor transitions
• Clear access to drains, grease management, and washdown points
• Enough room to clean behind and under equipment without dismantling half the room

Sanitation is often compromised by equipment that is technically compliant but operationally inaccessible. A stainless-steel line with poor service access can be harder to maintain than a simpler setup with better spacing and routing.

Utilities are part of the layout, not an afterthought

The best-looking kitchen drawing can still fail during installation if utilities were not planned early. Electrical load, gas supply, exhaust, make-up air, water pressure, drainage slope, and heat rejection all affect where equipment can go and how it will perform. For many projects, the utility map is the real layout.

Project managers should confirm three things before freezing the design:

• Equipment demand matches available infrastructure, with margin for peak use
• Service access is preserved after installation and enclosure
• Future replacement paths exist for large or fixed equipment

This is especially important when modern kitchen equipment includes automation, digital controls, connected monitoring, or higher-efficiency systems that have different power and ventilation needs from legacy units. Retrofitting these devices into an old kitchen without reworking the support systems often leads to performance loss or repeated shutdowns.

Compliance should be built into the plan, not checked at the end

Compliance is not only about passing inspection. It is about avoiding rework, delays, and operational restrictions after opening. Local building rules, fire protection requirements, accessibility rules, ventilation standards, and food hygiene requirements can all shape the layout. Exact obligations vary by jurisdiction, so any specific code reference should be verified locally【待核实】.

The practical issue is that many compliance failures come from coordination gaps rather than technical ignorance. For example, a cookline may be placed where the hood works, but the clearance around adjacent storage may create a fire or sanitation issue. A dishwashing area may be efficient for staff movement but too close to clean food prep. A compactor or waste route may satisfy operations but conflict with back-of-house hygiene controls.

For project teams, the right approach is to run compliance checks against the layout at each major revision, not just at final review. Once architectural, MEP, and equipment packages diverge, small misses become expensive field changes.

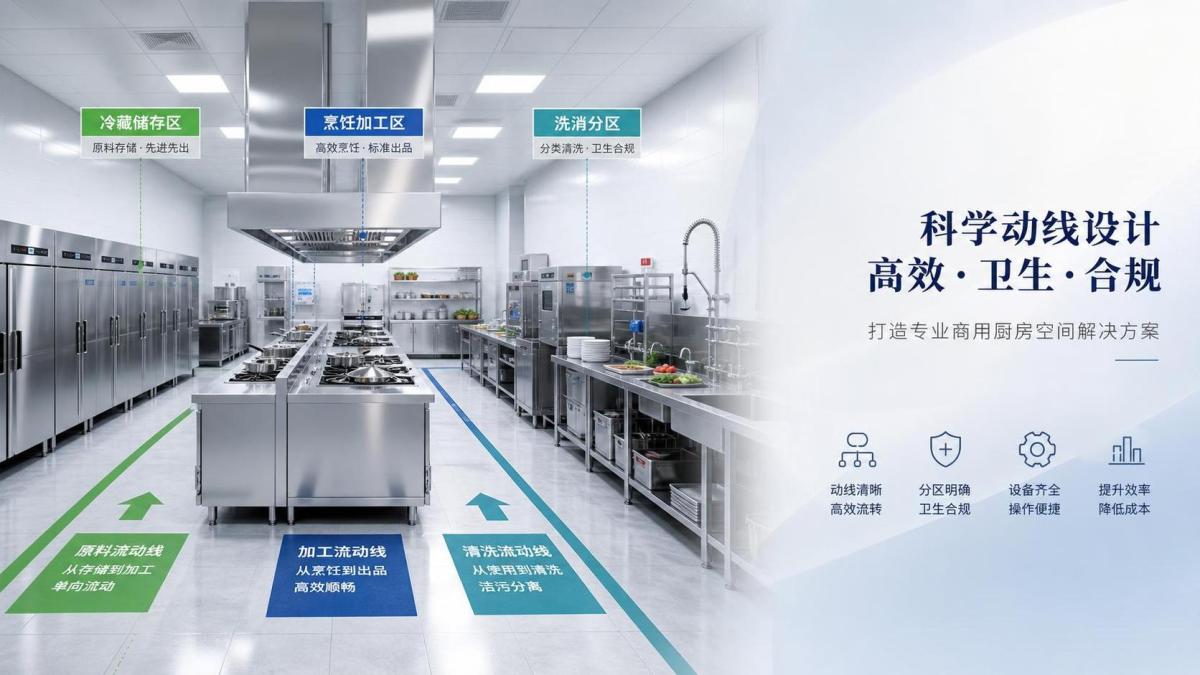

Think in zones, not rooms

Many effective kitchens are not designed as one continuous open area. They are organized into zones with different cleanliness levels, temperatures, and activity intensity. This helps staff understand where they are supposed to be and reduces the chance of accidental cross-contamination or congestion.

Typical zones include receiving, storage, prep, hot production, cold assembly, warewashing, and waste handling. The exact mix depends on the business model, but the principle is the same: every zone should have a clear purpose and a clear edge. If a corridor, equipment bank, or table is doing three jobs at once, the design is probably under-specified.

Zone-based planning also makes it easier to phase projects. If a facility must expand in stages, a modular layout can preserve operations while new lines, cold rooms, or prep stations are brought online.

Plan for staffing reality, not ideal staffing

A layout that works with a perfect labor model usually fails under normal turnover, peak service pressure, and training gaps. The project team should design for the actual number of people who will be in the space at peak periods, including supervisors, runners, cleaners, and maintenance staff.

That means checking aisle width, turning radius, door swing, and task overlap. It also means thinking about visibility. Managers need sightlines to critical areas, and staff need enough room to work without colliding at stations. Tight layouts may look efficient on a plan, but if they slow movement or increase mistakes, they are not efficient in operational terms.

A practical sequence for project teams

When the goal is to move from concept to buildable design, a structured sequence is more effective than debating individual equipment choices in isolation:

• Confirm service model, volume, menu complexity, and peak periods
• Map workflow from receiving to waste removal
• Define hygiene zones and contamination controls
• Check utility capacity and exhaust requirements
• Place major fixed equipment first
• Lay out support equipment, storage, and circulation paths
• Run compliance review with engineering, fire, and food safety stakeholders
• Validate service access, cleaning access, and replacement routes

That sequence reduces late-stage redesign because it surfaces conflicts while changes are still cheap. It also gives owners a clearer basis for tradeoffs: if a space is undersized, the issue becomes visible early as an operational compromise, not a surprise during commissioning.

Where modern equipment changes the layout discussion

Smart monitoring, energy-efficient appliances, automated cooking systems, and connected kitchen controls are changing how commercial kitchens are planned. In some projects, that means fewer manual steps and better data. In others, it means more complex integration requirements and a tighter dependency on power quality, network reliability, and vendor support.

Project teams should be careful not to assume that automation automatically reduces space needs or staffing pressure. Some systems simplify production but increase maintenance sensitivity or require dedicated service clearances. Others improve consistency but only if upstream preparation and downstream holding are equally well designed. The layout must support the whole system, not just the machine catalog.

Common mistakes that cost time later

Several layout errors keep repeating across restaurant, hotel, and central kitchen projects:

• Placing storage too far from prep to save prime space elsewhere
• Undersizing dishwashing and waste routes because they are not revenue-generating
• Ignoring cleaning access around fixed equipment
• Overcrowding the cookline and reducing safe working clearance
• Designing for average volume instead of peak service demand
• Leaving utility coordination until after equipment procurement

These mistakes are not always visible at opening, which is why they survive reviews. They show up later as delays, maintenance issues, fatigue, and inspection pressure.

The layout decision is really a risk decision

A commercial kitchen layout is not just a space plan. It is an operating policy expressed in walls, aisles, utilities, and equipment placement. The best layouts are the ones that make the right behavior easy: clean flows stay separate, staff movement stays efficient, sanitation stays practical, and compliance stays embedded in the build.

For project managers and engineering leads, the useful standard is not whether the kitchen looks complete on a drawing. It is whether the kitchen can be built, inspected, operated, cleaned, maintained, and adapted without constant workarounds. That is the level at which layout planning becomes a business decision rather than a technical exercise.
